Our Manual Laser Patient Positioning System

MAXX-600 Series

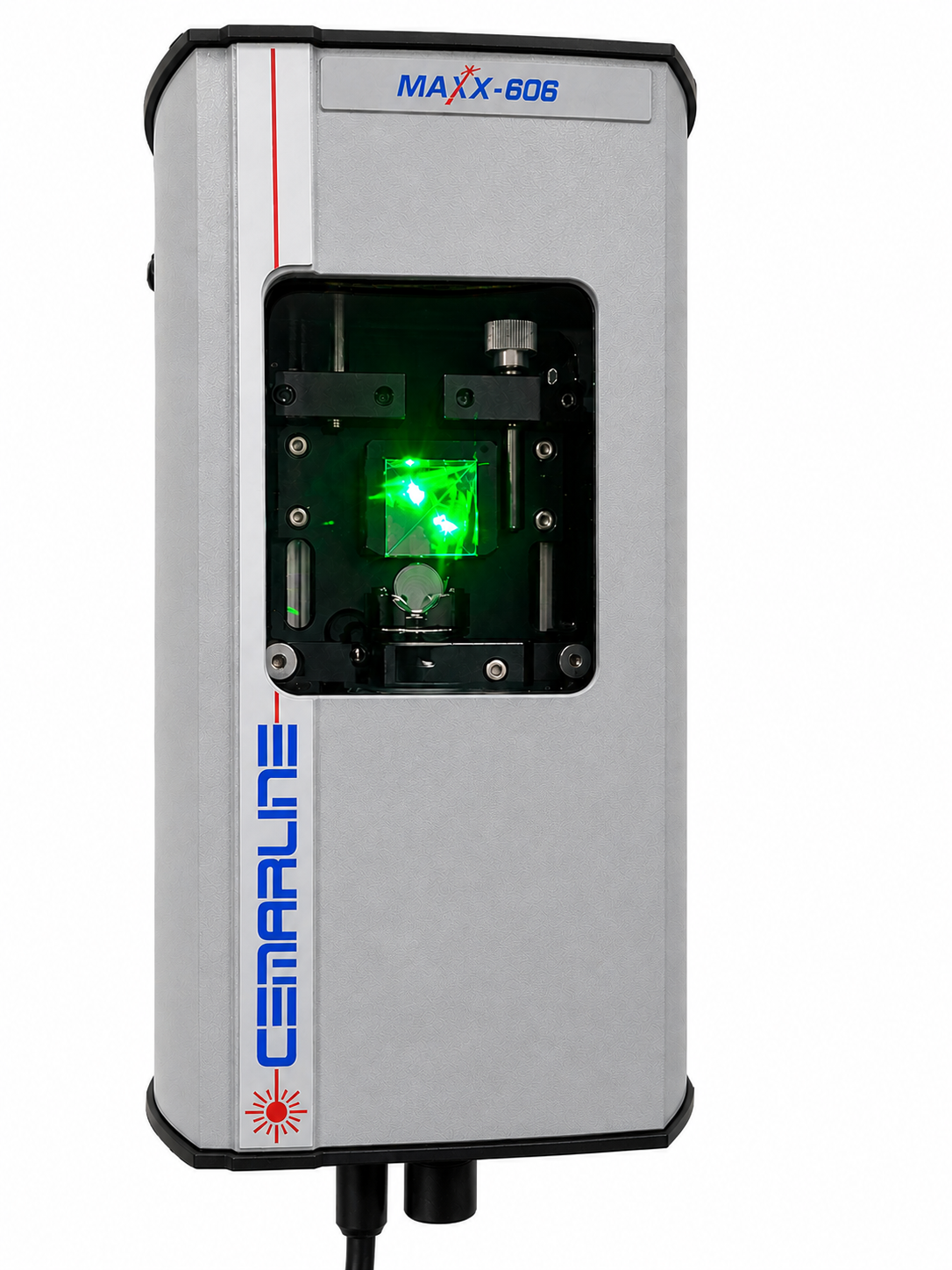

The Maxx-600 series is our manual patient positioning system and it is based on the original CL-606 series but takes advantage of a new streamlined and economic design along with the latest laser technology to offer a simple but robust laser with minimal maintenance. MAXX-600 series includes MAXX-606 crosshair laser and MAXX-607 sagittal laser.
Easy to install, the Maxx-606 and Maxx-607 embody the essence of our “The Art Of Simplicity” motto. The Maxx-600 series is the choice where there are budget concerns and will provide years of trouble free operation.

Laser Specifications :

  • 4 Axis movement:
    • X axis – Horizontal movement: 20mm (0.8”) +/-10mm (from ISO center)
    • Y axis – Vertical movement: 20mm (0.8”) +/-10mm (from ISO center)
    • Roll axis – Horizontal rotation: 10º +/-5º
    • Pitch axis – Vertical rotation: 6º +/-3º
  • Crosshair beam rotation: 15º +/-7.5º
  • Focus Adjustment: from 0.5m-6m (2’-20’)
  • Crosshair beam fan-out: 60º in both axis
  • Available colors: red and green
  • Laser Power Adjustment: < 1mW
  • Maximum line width @ 3m (10’): < 1.2mm (0.047”)
  • Operating Temperature: 5°-28°C (40°-85°F)
  • Power requirements: 110-240 VAC, 0.8A, 50-60Hz
  • Dimensions:
    • Length 210mm (8.2”)
    • Width 118mm (4.6”)
    • Height 100mm (3.9”)
  • Weight: 1.8 kg (3.9 lbs)
